Workbenches

Static & Mobile

Are you looking for a custom built mobile workbench? Our industrial static workbenches are manufactured to your dimensions to ensure they fit your requirement.

Email us your rough sketch today!

Specification:
Worktop:         Your choice of Workbench Worktop. See options below
Frame:             40mm x 40mm x 2mm section
Load:               Up to 750KG for frames on feet

                         Up to 240KG for frames on castors (wheels)

                         (our standard frames can be adapted to take larger loads if required)
Lower Rail:     Choice of Middle or Back Rail

Shelves:          Upper or lower shelves available

Options:

Feet:               Machine threaded levelling feet. All tables are available on castors.

Feet:               Machine threaded levelling feet anti vibration feet.

Castors:         100mm lockable heavy duty rubber coated swivel castors (wheels)



Extra Options: see accessories page

Shelves. Upper & Lower

Power Packs (electric & data sockets)

Computer Cradles

Cupboards & Draws


Our workbench table frames are constructed from 40mm x 40mm quality kite marked steel. With its welded joints typically being 3 times stronger than the actual steel. The frame is sand blasted and painted under heat to ensure a tough lasting finish which will not crack, chip or peel like conventional paints. To ensure clients peace of mind the whole frame is supported on 8mm inset welded foot plates which are flow drilled and tapped to accept 12mm levelling feet complete with locking nut mounted. Our levelling feet are rated at 200KG per individual foot.

Standard Frame Colours:
The standard final coating is high gloss but other finishes can be supplied as required. Our standard lab table frame colours are:

  • White – RAL: 9010

  • Light Grey – RAL: 7035

  • Black

All RAL colours are available but non standard colours carry an extra charge of £50.00 per order ​

Examples of Recent Orders

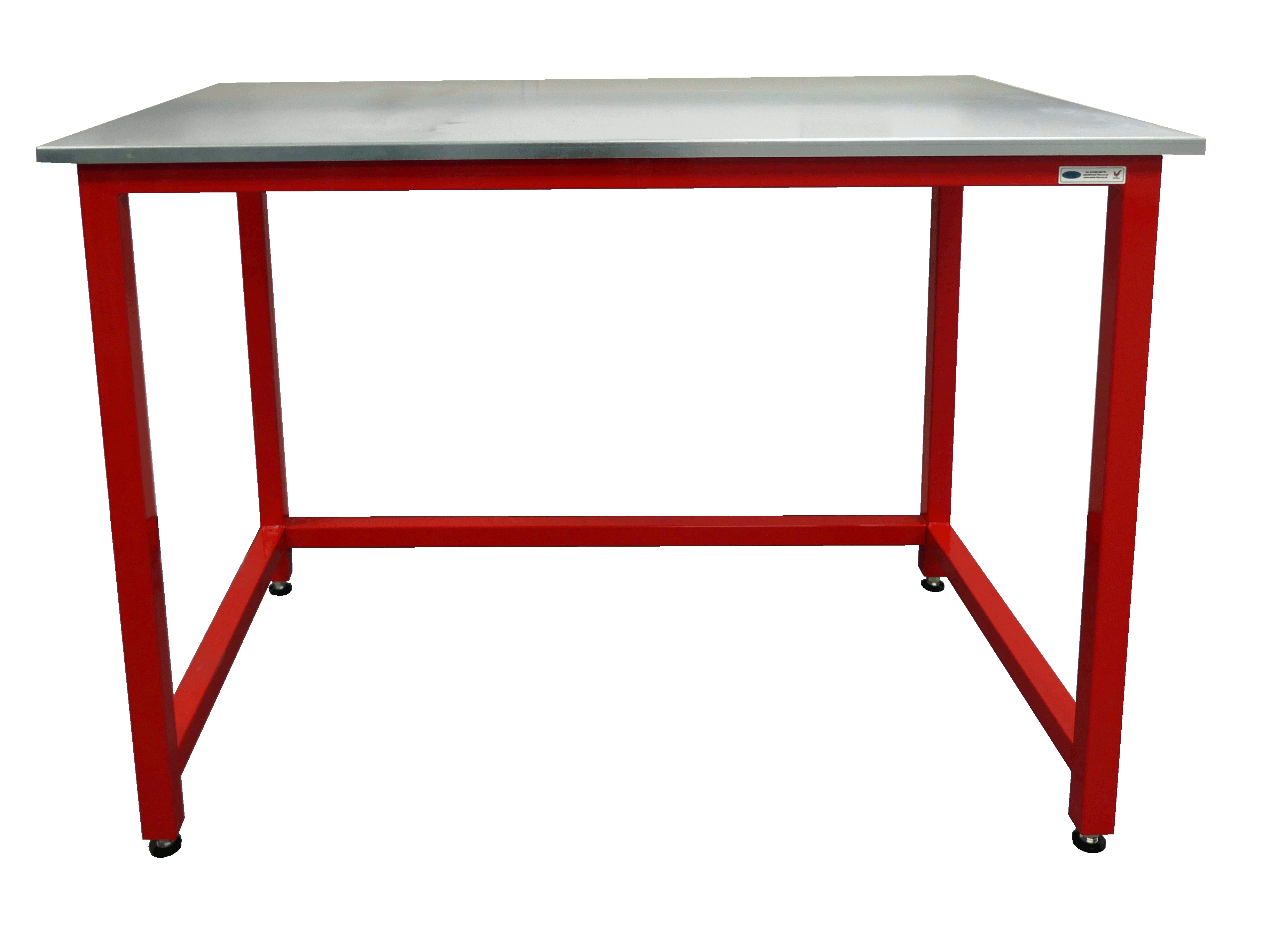

Galvanised Steel Worktop with Powder Coated Mid Coated Steel Frame
Trespa Worktop with Sliding Shelf & Cupboard Draw Set
Frame with cutouts, grommet and lower shelves
Workbench Worktop Options

Galvanised Steel:

Work Surface:                   2mm galvanised steel, turned down at all four edge.
Core:                                  18mm MDF Timber core
Overall thickness:            20mm
Worktop Dimensions:     Bespoke
Usages:                              Heavy duty environments

Suitable for fixing bench vices to. We can supply vices for £70.00 each +VAT

MDF:

Thickness:                        18mm
Core:                                 Timber core
Work Surface:                  MDF
Worktop Dimensions:    Bespoke
Colours:                            Self Colour: Brown








Granite:

Thickness:                        30mm
Worktop Dimensions:    1200 x 600mm - Other sizes available on request



Trespa TopLab (Solid Grade Laminate):

Thickness:                       16mm
Worktop Colours:           Trespa TopLab Base Colour Choice
Edge:                                Black (Black Core)
Worktop Dimensions:   Bespoke
Usages:                            Laboratories (Hospital, Industrial, Education etc)
                                          Wet Benches
                                          Dry ESD Electrical Benches

Trespa is composed of Kraft paper with phenolic resin applied. It is made by compressing impregnated paper or wood fibres and epoxy, phenolic or polypropylene resin at high pressure and high temperature. A special surface made with Electronic Beam Curing, a coating technique developed by Trespa, ensures durability and scratch resistance.
